Core Structure & Materials
Face Sheets:
Material: Typically rust-proof aluminum alloy.
Surface Treatment:
PVDF Coating: The most common and suitable treatment for exteriors. Uses PVDF paint, offering excellent weather resistance, UV resistance, corrosion resistance, self-cleaning properties, and long-lasting color stability.
Anodized: Forms a hard oxide layer, providing a unique metallic finish and tech aesthetic, with good scratch resistance, but relatively fewer color options.
Roll Coating / PE Spray Coating: Cost-effective, suitable for projects with lower requirements.
Core Layer:
Material: Hexagonal honeycomb core made from aluminum foil. The honeycomb structure is one of the most stable and efficient structures found in nature.
Function: While ensuring very high strength, it traps air within its numerous cells, achieving superior rigidity and excellent thermal insulation and acoustic performance.
Adhesive:
High-performance epoxy structural adhesive or polyurethane adhesive is used. The panels and core are firmly bonded on continuous hot-press production lines, ensuring the panels do not delaminate or separate under harsh outdoor conditions.
Key Product Features & Advantages
Lightweight & High-Strength, Structurally Stable: Weighs only about 1/5 of an aluminum single sheet and 1/10 of a steel plate of equivalent stiffness, yet can withstand extremely high wind pressures and impact loads. This significantly reduces the load on the building's primary structure and foundation, lowering project costs.
Excellent Flatness & Rigidity: The honeycomb structure prevents surface bulging or denting, maintaining extremely high flatness even in oversized panels, ensuring a smooth, mirror-like building facade with superior visual appeal.
Outstanding Weather Resistance & Durability: The PVDF coating and all-aluminum structure enable effective resistance against erosion from acid rain, salt spray, air pollution, and UV rays. Service life can reach 20-30 years, making it an ideal choice for permanent buildings.
Rich Decorative Effects: Highly customizable in color, size, and shape. Beyond solid colors, various 3D textures like wood grain, stone grain, and metallic brush can be achieved, perfectly replicating diverse design styles.
Good Energy Saving & Environmental Performance: The honeycomb core acts as a natural thermal and acoustic insulation layer. For higher performance, fire-resistant insulation materials can be filled inside the honeycomb core, effectively reducing building energy consumption. Aluminum material is 100% recyclable, making it green and eco-friendly.
Convenient Installation & Maintenance: Factory-produced with a high degree of prefabrication, utilizing mature installation systems (e.g., clip-in, hook-on), enabling fast construction. The smooth surface is not prone to staining and can be cleaned by rainwater, resulting in very low maintenance costs.
Excellent Fire Performance: Aluminum is a non-combustible material, complying with fire safety regulations for high-rise and super high-rise building curtain walls.
Common Curtain Wall Forms
Aluminum honeycomb panels can be processed into various curtain wall systems based on design requirements:
Cassette Panel Curtain Wall: The most common form. Features folded edges on all four sides, connected to the support structure via brackets, offering safe and reliable structural performance.
Hook-on Panel Curtain Wall: Adjacent panels interlock with each other. No sealant is used at the joints, resulting in a clean appearance and smooth drainage.
Corrugated / Perforated Panel Curtain Wall: Formed by pressing into 3D corrugations/patterns or perforated, combining decoration with functions like ventilation and sun-shading.

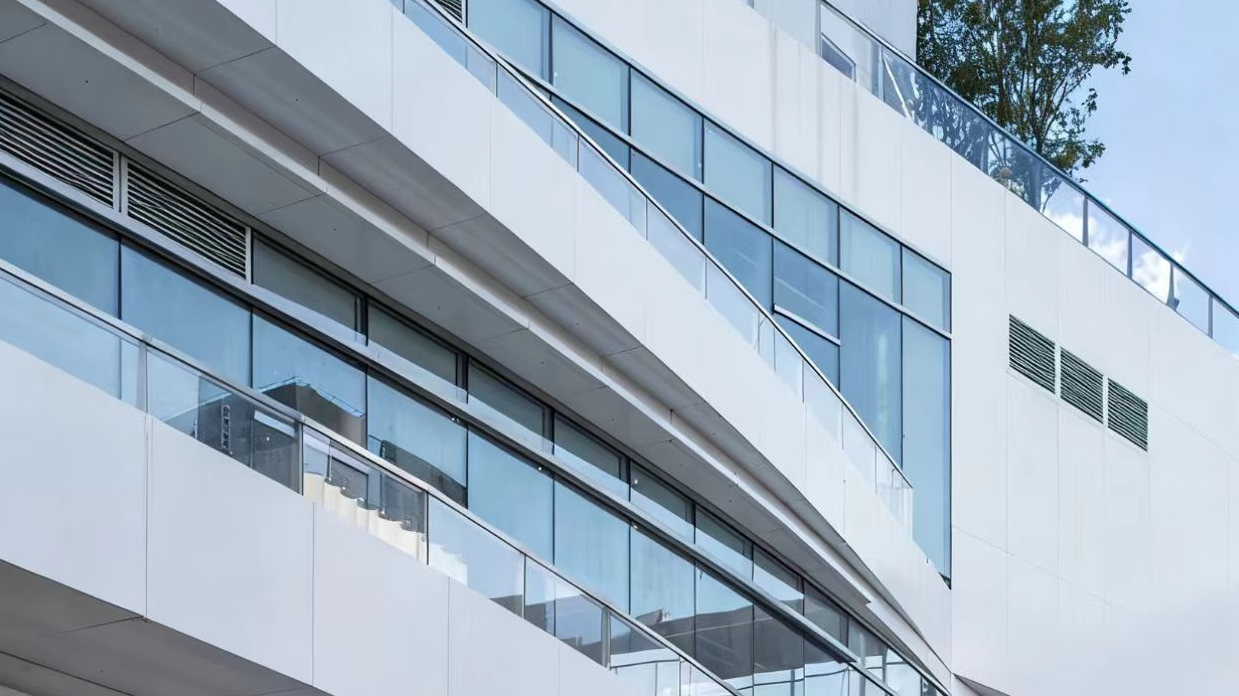

Double-Curved Panel Curtain Wall: Can be processed into double-curved shapes, meeting the complex form requirements of streamlined and special-shaped architectural designs.
Suitable Building Applications

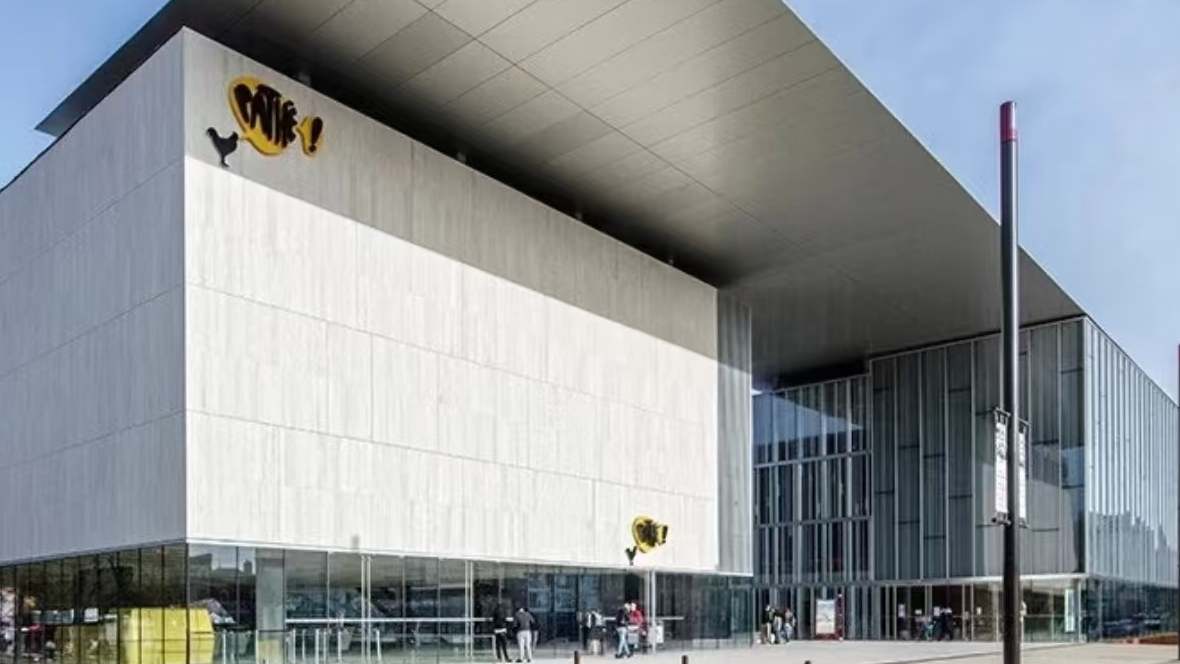

Aluminum honeycomb panel curtain walls are widely used in various projects demanding high standards for architectural appearance and performance:
High-end office buildings and commercial centers
Airports, high-speed rail stations, convention and exhibition centers
Large stadiums, theaters, museums, and other cultural landmarks
Star-rated hotels and large shopping malls
Public buildings like hospitals and schools
The aluminum honeycomb exterior curtain wall perfectly addresses the comprehensive needs of buildings for lightweight construction, high rigidity, exceptional durability, and rich aesthetic expression.
