45 Series Ecological Doors

Aluminum honeycomb door 45 series ecological door · Inward flat and inward opening

1. Product Overview

The 45 Series Eco-Door · Inset Inward Opening is a modern ecological door constructed with aerospace-grade aluminum honeycomb core

and high-strength aluminum alloy frame. Its flush design (door panel aligned with frame) and inward opening (swinging into the room) make it an ideal choice for contemporary homes, hotels, and office spaces, combining minimalist aesthetics with exceptional performance.

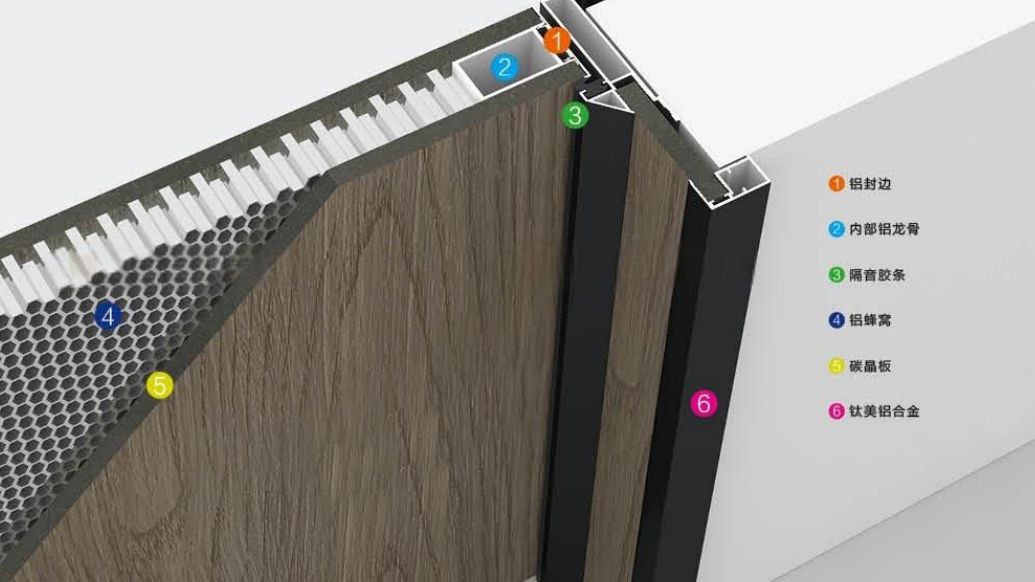

2. Core Structure

Outer Panel：1.0-2.0mm premium aluminum alloy, optional spray coating/wood grain transfer/fluorocarbon finish Scratch-resistant, anti-corrosion, adaptable to various styles

Core Filling：Aerospace-grade aluminum honeycomb core , low density, high compressive strength Lightweight , sound and thermal

insulation

1.Sealing System：Triple-layer EPDM sealing gaskets (frame + panel) 38dB sound insulation, wind and dust proof

Hardware System：304 stainless steel concealed hinges (3D adjustable) + multi-point locking

Silent operation, 100,000-cycle durability certified

Frame Structure：45mm thickened aluminum alloy frame with internal reinforcement Anti-deformation, high load-bearing capacity

3. Product Advantages

Minimalist Design

The frameless and extremely narrow bezel design is suitable for modern minimalist style

Superior Performance

Noise Reduction: Honeycomb structure + triple sealing achieves 38dB sound insulation (professional quiet door standard)

Fire & Moisture Resistance: Optional fireproof rock wool core (Class B1 flame retardant), aluminum alloy prevents moisture/mold

Eco-Safe: Zero formaldehyde emission (SGS certified), child-friendly safety standard

Smart Compatibility

Pre-installed smart lock slot compatible with mainstream electronic locks

Optional magnetic door closer for automatic silent closing

4. Application Scenarios

Premium Residences: Bedroom doors, study doors prioritizing quietness and aesthetics

Commercial Spaces: Hotel rooms, office partitions requiring fireproofing and sound insulation

Special Environments: Coastal/humid areas (anti-corrosion), hospitals/schools (easy cleaning)

45 Series Eco-Door - Flush Surface Inward Opening (Aluminum Honeycomb Door)

1.Product Overview

The 45 Series Eco-Door with flush surface and inward opening is a modern ecological door constructed with aerospace-grade aluminum honeycomb core and high-strength aluminum alloy frame. Its flush surface design (door panel covering the frame) and inward opening mechanism (swinging into the room) make it an ideal choice for commercial spaces, premium residences, and engineering projects, combining aesthetic appeal with practical functionality.

2.Core Structure

Outer Panel: 1.2-2.0mm premium aluminum alloy plate with optional spray coating/wood grain transfer/fluorocarbon finish.Features: Scratch-resistant, corrosion-proof, adaptable to various decoration styles

Core Filling: Aerospace-grade aluminum honeycomb core (5mm cell size).Features: Lightweight, excellent sound and thermal insulation

Sealing System: Dual-layer EPDM sealing gaskets (frame + panel).Performance: 35dB sound insulation, wind and dust proof

Hardware System: 304 stainless steel surface-mounted hinges + multi-point locking.Performance: Sturdy and durable, 100,000-cycle endurance certified

Frame Structure: 45mm thickened aluminum alloy frame with internal reinforcement.Features: Anti-deformation, high load-bearing capacity

3.Product Advantages

Flush Surface Design

Door panel fully covers the frame for a smooth exterior appearance

Ideal for applications requiring concealed framing

Superior Performance

Sound insulation: 35dB with honeycomb structure + dual sealing

Fire & moisture resistance: Optional B1-grade fireproof rock wool core, moisture-proof aluminum alloy

Eco-friendly & safe: Zero formaldehyde emission (SGS certified)

Easy Installation

Surface-mounted hinge design for easier installation and maintenance

Compatible with various wall thicknesses

4.Application Scenarios

Commercial Spaces: Hotel rooms, office partitions requiring fireproofing and sound insulation

Premium Residences: Entry doors, bedroom doors pursuing aesthetics and practicality

Engineering Projects: Hospitals, schools and other places requiring high durability

45 Series Magnetic Sealing Eco-Door

1.Product Overview

The 45 Series Magnetic Sealing Eco-Door integrates aerospace-grade aluminum honeycomb core with high-strength aluminum alloy through innovative magnetic sealing technology. Its concealed magnetic system ensures millimeter-precision closure between door leaf and frame, redefining modern acoustic standards for doors and windows.

2.Core Technology

Magnetic Sealing System:16 neodymium magnets arranged in an optimized array

Generates 8N±1N adsorption force

Triple-Layer Acoustic Structure:

Outer layer: 2.0mm thickened aluminum alloy panel

Middle layer: Variable-density honeycomb matrix

Inner layer: Microporous sound-absorbing foam

Smart Hardware System:

Magnetic positioning error ≤0.3mm

3.Core Advantages

① Ultra Silence: Closing noise <20dB

② Smart Anti-Pinch: Auto-release at 3mm obstruction detection

③ Energy Efficient: Thermal conductivity 0.58W/(m·K)

④ Antibacterial Surface: 99% antimicrobial coating

4.Application Scenarios

Premium residences: Bedrooms, studies, home theaters

Medical facilities: Operating rooms, ICU wards

Commercial spaces: 5-star hotel suites, premium clubs

Special requirements: Recording studios, precision instrument rooms
