Overview
The 150 SYSTEM WINDOW is a benchmark door and window system developed with German precision engineering, specifically designed for modern energy-efficient buildings and high-quality living spaces. Its name derives from its exceptional core performance—the entire window’s U-value is as low as 1.50 W/(m²·K) or below.
This system integrates superior thermal insulation, excellent soundproofing, and robust security, aiming to deliver unprecedented energy efficiency and comfort for users. It is an ideal choice for meeting passive house standards and the highest national requirements for energy-efficient construction.
Core Features & Advantages
Benchmark Energy Efficiency Performance
High-Efficiency Thermal Barrier: Equipped with ultra-wide thermal break strips ≥34mm, creating a powerful "thermal barrier" that blocks heat loss at the source. This ensures a comfortable indoor environment year-round and significantly reduces heating and cooling costs.
High-Performance Glass Configuration: Standard triple-pane, double-cavity, double Low-E coated, argon-filled glass. The dual Low-E layers maximize reflection of heat radiation, while argon gas reduces heat convection, achieving a center-glass U-value as low as below 0.7. This is key to reaching the 1.5 system target.
Environmental and Economic Value: Drastically reduces building operational energy consumption and carbon emissions, aligning with green building standards and delivering long-term economic benefits for users.
Exceptional Sealing and Acoustic Performance
Multi-Layer Sealing Design: Features triple sealing strips, forming an airtight system between the sash and frame that effectively prevents air infiltration and noise intrusion.
Professional-Grade Sound Insulation: Excellent sealing combined with the acoustic damping effect of insulating glass effectively blocks external noise, achieving noise reduction of 35-40 dB, creating a tranquil and comfortable home or office environment.
Robust Structure and Comprehensive Security
High-Precision Profiles: Made from 6060-T6 high-precision aluminum alloy with a profile wall thickness ≥1.8mm, ensuring structural strength and exceptional wind pressure resistance.

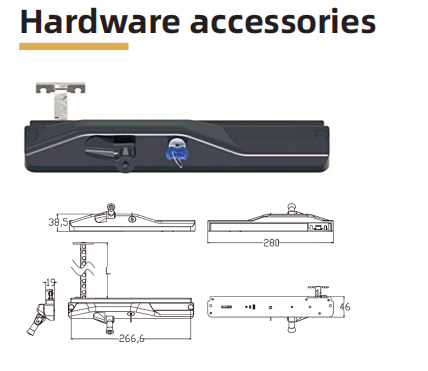

Security Hardware System: Equipped with multi-point locking hardware, with lock points extending to all four corners of the sash. This provides superior sealing while offering outstanding anti-burglary and anti-prying performance, ensuring home safety.

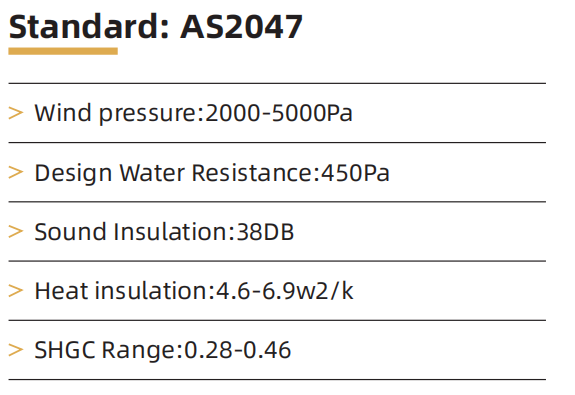

All-Weather Performance: Rigorously tested for air permeability and water tightness, capable of withstanding harsh weather conditions.
German Aesthetics and User-Friendly Design
Slim Frame Design: Embraces a modern minimalist design language, minimizing visible frame width without compromising strength. This maximizes daylight and views while enhancing the building’s aesthetic appeal.
Flexible Customization: Offers various opening styles and a wide range of color options to perfectly complement different architectural styles.
Smooth Operation: High-quality hardware ensures smooth opening and closing with a light tactile feel. The tilt-and-turn mode allows for gentle ventilation, combining safety and convenience.
Application Scenarios
Energy Retrofit Projects: Retrofitting older communities to improve the energy efficiency of existing buildings.
New High-Standard Residential Buildings: New developments meeting national and local energy-efficient design standards.
Villas and High-End Homes: For homeowners with high demands for quality of life, energy efficiency, and environmental sustainability.
Public Facilities: Schools, hospitals, and other public buildings requiring constant temperatures and quiet environments.
Spaces with Special Thermal Insulation Requirements: Such as sunrooms and large-span doors and windows.
