Product Definition & Market Positioning
The standard thermal break window with integrated screen is a mainstream and cost-effective choice in the Chinese door and window consumer market. It is based on a standard thermal break aluminum alloy window but integrates the function of a stainless steel wire mesh screen into a single window frame system.
"Standard": Differentiates it from "system windows," indicating it is not a complete, fully integrated system designed and tested with strictly matched components. It primarily utilizes readily available universal profiles and hardware for assembly. Its performance meets standards but is not extreme or top-tier.
"Thermal Break": Refers to the use of a thermal barrier to separate the indoor and outdoor aluminum alloy profiles, creating effective thermal resistance for insulation purposes. This is the foundation of energy-efficient windows.
"Integrated Screen": This is its core selling point. It means the screen frame and the window frame are designed as one integrated unit, assembled together either at the factory or on-site, rather than being added on separately later.
Market Positioning: A cost-effective product that meets the core needs of most families for energy efficiency, safety, insect prevention, and ventilation. It is the preferred choice for upgrading traditional aluminum alloy windows and standard PVC windows.

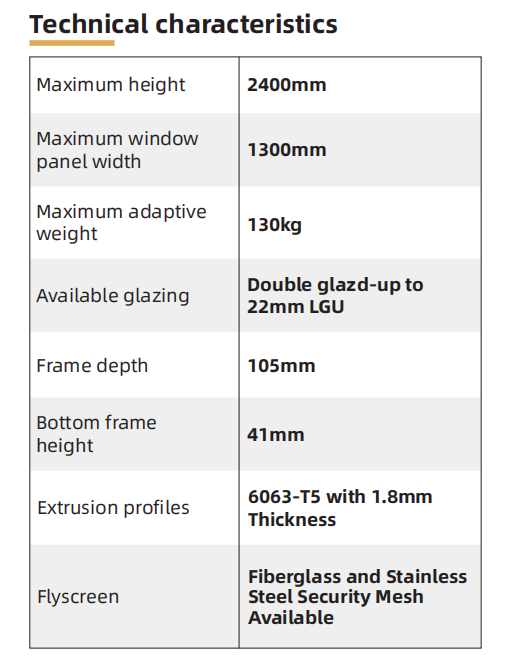

Core Components & Features

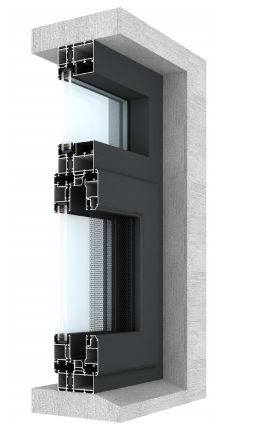

Profile System
Material: Uses 6063-T5 aluminum alloy. Profile wall thickness typically complies with national standards.
Structure: Multi-chamber design with built-in thermal barrier strips. Performance is superior to standard aluminum windows, but the width of the thermal barrier and the complexity of the chamber structure may not match that of high-end system windows.
Surface Treatment: Uses powder coating or electrophoretic coating, offering various color options with good durability.
Glass Configuration
Standard: Double-pane insulated (double glazing) tempered glass. This is the current market standard, providing good sound insulation and thermal insulation.
Optional Upgrades: Can be upgraded (usually at extra cost) to Low-E glass, triple-pane double glazing (three glasses, two chambers), or laminated glass.
"Integrated" Stainless Steel Wire Mesh Screen
Integrated Design: The screen frame is organically combined with the window sash frame, resulting in a neater, more aesthetic appearance. It avoids the abruptness/awkward look and potential installation strength issues associated with retrofitted screens.
Easy Removal: Usually designed for easy indoor-side removal and installation, facilitating cleaning of both the glass and the screen mesh.
Multi-functional Mesh:
Insect Prevention: Basic function.
Safety & Protection: The high-strength stainless steel mesh offers a degree of anti-theft and fall prevention functionality.
Durable & Scratch-Resistant: Significantly longer lifespan compared to ordinary fiberglass screens.
Hardware & Sealing
Hardware: Generally uses domestic or joint-venture brand universal hardware. It meets the requirements for daily use and basic safety, but its load-bearing capacity, smoothness, and service life might not match that of imported high-end hardware.
Sealing: Typically equipped with 2-3 sealing gaskets, ensuring good air and water tightness that meets relevant national standards.
Main Advantages
Comprehensive Functionality & High Cost-Effectiveness: Addresses all core needs – insulation, soundproofing, safety, insect prevention, ventilation – at once. It is the most balanced choice in terms of features.
Aesthetic & Neat: The integrated design is more aesthetically pleasing and tidy compared to retrofitted screens, offering better overall coherence.
Energy Efficient & Eco-Friendly: The thermal break structure effectively reduces energy consumption for both summer cooling and winter heating.
Enhanced Safety: The stainless steel mesh provides additional protection, especially suitable for families with children or those living on lower floors.
Mature Market: The product is mature, with numerous suppliers, transparent pricing, and abundant choices.
Applicable Scenarios & Target Customer Base
Scenarios: The vast majority of high-rise and mid-rise residential apartments; villas and low-rise homes without extreme performance requirements; renovation projects with limited budgets.
Customers: Average family users seeking practicality and cost-effectiveness; consumers looking to significantly improve their living experience without needing top-tier performance.
Summary
The standard thermal break window with integrated screen is the "all-rounder" (balanced performer) in the process of door and window consumer upgrades. It has no obvious weaknesses, offering balanced and practical functionality across the board. It provides a comprehensive experience far exceeding that of traditional windows and doors at a reasonable price.
For most families, choosing a reliable, well-installed standard thermal break window with integrated screen is entirely sufficient and offers the highest cost-effectiveness. It represents the market's mainstream product that finds the optimal balance between "basic performance" and "budget cost." If you are not pursuing extreme performance, living in a special environment, or have an unlimited budget, then it is undoubtedly your wisest choice.
